Heating

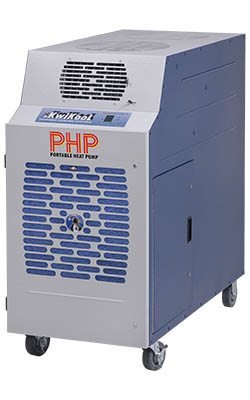

KPHP 2211
Qwik Breeze’s PHP Portable Heatpump Series includes the Model KPHP2211, which has a nominal 1.8-ton heating and 1.5-ton BTU cooling capacity. This unit is the smallest one in size and capacity in the series. The KPHP2211 is a combined heating and air conditioning model with a full-featured design, high sensible cooling, and balanced air system. It’s a great solution for comfort cooling and portable heating rentals in Colorado applications.
21,240 BTU (1.8-Ton) Heating & 17,700 BTU (1.5-Ton) Cooling
Series includes the Model KPHP2211, which has a nominal 1.8-ton heating and 1.5-ton BTU cooling capacity. This unit is the smallest one in size and capacity in the series. The KPHP2211 is a combined heating and air conditioning model with a full-featured design, high sensible cooling, and balanced air system. It’s a great solution for comfort cooling and heating applications.
The PHP Series has “plug and play” technology, making it quick and easy to use. It’s a top performer in terms of small size, big performance, and tons of features. The series outperforms other portable units with its hi-tech microprocessor controls and self-diagnostics. It also has a long list of standard features and a price that’s comparable to other available products.
One of the things that sets the Qwik Breeze heat pump apart from other brands is that it can operate all the way down to 45 degrees F. Additionally, all PHP Series units come standard with the exclusive I/O Integral Condenser Dual Ducting. This feature provides isolated and balanced air pressure within the space for maximum cooling efficiency.
The KPHP2211 runs on a standard 115-volt/20-amp circuit and has automatic restart after a power failure. The unit comes with an internal high lift condensate pump and a 5-gallon exterior condensate tank with float activated unit cut off for short term use.
- HEATING BTU/hr @ 55F at 60% RH21,240 (Nominal 1.8-Ton)
- COOLING BTU/hr @ 95F at 60% RH17,700 (Nominal 1.5-Ton)
- COMPRESSOR DATA Compressor Type: Hermetic Rotary Operating Cooling Temperatures:60-110 F 50%RH Operating Heating Temperatures:40-80 F 50% RH Refrigerant:410A
- FAN DATA Evaporator Fan Type (Centrifugal)Direct Drive Air Flow (CFM)600 Supply Air Device:Adjustable Vent Supply Air Chute Kit (optional)2 – 6″ Dia. x 16″ Length:Condenser I/O Integral Condenser:Balanced Air Flow Fan Type (Centrifugal)Direct Drive Air Flow (CFM)950 Condenser Duct Specs (optional)2 – 12″ Dia. x 8′ Length Condenser Duct Max. Length25′
- ELECTRICAL DATA Power Supply (Volts)115/Single Phase Current Consumption (Amps)13.7 Cooling / 16.2 Heating Power Consumption (kW)1.65 Maximum Circuit Breaker (Amps)30 Recommended Breaker Size:20 Minimum Circuit Ampacity(Amps)21.875 Min./Max. Voltage:105-125 Power Cord Gauge/Length:12/6′ Plug Configuration:NEMA 5-20
- DIMENSIONAL DATA Width x Depth x Height (Inches)20.25″ x 41″ x 43.25″ Weight (Lbs.)278 Shipping Weight (Lbs.)328 Ceiling Kit Weight (Lbs.)38 Shipping Weight w/ Ceiling Kit:366
- SAFETY DEVICE DATA Compressor Overload:Internal Fan Motor Overload:Automatic Internal Evaporator Freeze Protection:Hot Gas Bypass High Pressure Switch:Manual Low Pressure Switch:Automatic Compressor Short Cycle:Yes Automatic Restart:Yes Thermostat Type:Microprocessor/Digital Condensate Pump Overflow:Yes Condensate Tank Overflow:Yes
- Product: Powerful and compact air conditioning and heating unit
- Made in USA
- Cooling capacity: 1.5-ton, 17,700 BTU/H
- Heating capacity: 1.8-ton, 21,240 BTU/H
- Power requirement: 115V 20 amp circuit
- Temperature range: Operates in temperatures as low as 45 degrees F
- Balanced air pressure: Uses separate condenser air input and output
- High-pressure condensate pump: Standard inclusion
- Superior safety compared to electric heaters
- Easy-touch control pads for changing system settings
- Independent evaporator and condenser motors for reliable performance
- Auto-restart function in the event of a power failure
- Heavy-duty locking casters for easy mobility
- Fully insulated, heavy-duty galvanized steel cabinet with KwiKool’s exclusive E-Z Clean™ scratch-resistant attractive two-tone HammerCoat™ epoxy protective finish for optimum durability, efficiency, low maintenance, and quiet operation
- Easy-access service door for easy maintenance.
Heating
KPHP 1811
Quik Breeze’s PHP Portable Heatpump Series features the Model KPHP1811, which has a nominal 1.5-ton heating and 1.1-ton BTU cooling capacity, making it the smallest unit in size and capacity in the series. The KPHP1811 is a combined heating and air conditioning model with a full-featured design, high sensible cooling, and balanced air system that makes it an ideal solution for comfort cooling and portable heating rentals in Colorado.
17,010 BTU (1.8-Ton) Heating & 13,850 BTU (1.5-Ton) Cooling
The KPHP1811 runs on a standard 115-volt/15-amp circuit and has automatic restart after a power failure. The unit comes with an internal high lift condensate pump and a 5-gallon exterior condensate tank with float activated unit cut off for short term use.
The PHP Series is known for its “plug and play” technology that makes it quick and easy to use. It’s a top performer in its small size, big performance, and numerous features. The series outperforms other portable units in terms of hi-tech microprocessor controls, self-diagnostics, and a long list of standard features. The PHP Series is priced comparably to other available products.
Unlike other heat pump brands, the Qwikbreeze heat pump can operate all the way down to 45 degrees F. Additionally, all PHP Series units come standard with the exclusive I/O Integral Condenser Dual Ducting, which provides isolated and balanced air pressure within the space for maximum cooling efficiency.
HEATING:BTU/hr @ 55F at 60% RH17,010 (Nominal 1.5-Ton)
COOLING:BTU/hr @ 95F at 60% RH13,850 (Nominal 1.1-Ton)
COMPRESSOR DATA Compressor Type:Hermetic Rotary Operating Cooling Temperatures:60-110 F 50%RH Operating Heating Temperatures:40-80 F 50% RH Refrigerant:410A
FAN DATA Evaporator Fan Type (Centrifugal)Direct Drive Air Flow (CFM)460 Supply Air Device:Adjustable Vent Supply Air Chute Kit (optional)2 – 5″ Dia. x 12″ Length:Condenser I/O Integral Condenser:Balanced Air Flow Fan Type (Centrifugal)Direct Drive Air Flow (CFM)700 Condenser Duct Specs (optional)2 – 12″ Dia. x 8′ Length Condenser Duct Max. Length:25′
ELECTRICAL DATA Power Supply (Volts)115/Single Phase Current Consumption (Amps)11.5 Cooling / 14.7 Heating Power Consumption (kW)1.35 Maximum Circuit Breaker (Amps)20 Recommended Breaker Size:15 Minimum Circuit Ampacity(Amps)18.075 Min./Max. Voltage:105-125 Power Cord Gauge/Length:14/6′ Plug Configuration:NEMA 5-20
DIMENSIONAL DATA Width x Depth x Height (Inches)16.325″ x 36″ x 37.25″ Weight (Lbs.)221 Shipping Weight (Lbs.)271 Ceiling Kit Weight (Lbs.)38 Shipping Weight w/ Ceiling Kit309
SAFETY DEVICE DATA Compressor Overload:Internal Fan Motor Overload:Automatic Internal Evaporator Freeze Protection:Hot Gas Bypass High Pressure Switch:Manual Low Pressure Switch:Automatic Compressor Short Cycle:Yes Automatic Restart:Yes Thermostat Type:Microprocessor/Digital Condensate Pump Overflow:Yes Condensate Tank Overflow:Yes
- Made in the USA
- Compact yet powerful with 13,850 BTU/H – 1.1-ton capacity cooling and 17,010 BTU/H – 1.5-ton capacity heating
- Runs on a 115V 15 amp circuit and operates down to a 45 degree F ambient environment
- Balanced air pressure using separate condenser air input and output for maximum efficiency
- Superior safety compared to electric heaters with standard high-pressure condensate pump and independent evaporator and condenser motors
- Easy-touch control pads make changing system settings a snap
- Auto restart in the event of a power failure and heavy-duty locking casters for easy mobility
- Fully insulated, heavy-duty galvanized steel cabinet with KwiKool’s exclusive E-Z Clean scratch-resistant attractive two-tone HammerCoat epoxy protective finish for optimum durability, efficiency, low maintenance, and quiet operation
- Easy access service door for convenient maintenance and repairs.
